We introduce falsework props and systems by Acrow Misr (Acrow Group), based in Egypt. From lightweight systems designed for slab construction to heavy-duty solutions suitable for bridge and tunneling construction, this overview summarizes the configurations and key features tailored to different applications.

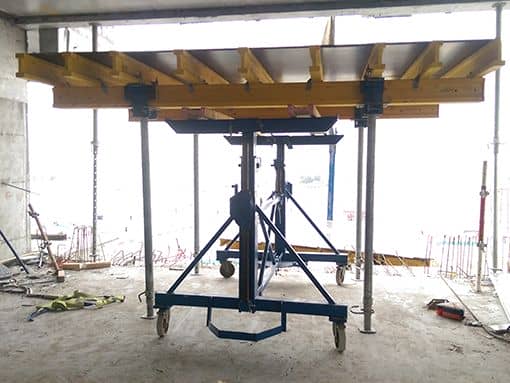

The ACROW Prop Table Form System is a falsework prop for slab construction, suitable for heights of up to around 4.5 meters. It is composed of telescopic steel pipes, allowing the height to be easily adjusted to suit on-site conditions.
Its table-type configuration makes it well suited to large-area slab construction, while assembly, striking, and relocation can be carried out smoothly and efficiently. The system is also designed with reusability and ease of storage in mind, making it a practical choice for sites where efficient transportation and space management are important.
| Weight | Upon request |
|---|---|
| Load-Bearing Capacity | 20 kN / 30 kN |
| Material | • Material: Steel • Surface treatment: Hot-dip galvanizing |
| Overall Length | • Table Dimensions Length: 4.00 m / 5.00 m Width: 2.15 m, 2.5 m, 2.65 m, 2.9 m Applicable slab height: Up to a maximum of 4.5 m |

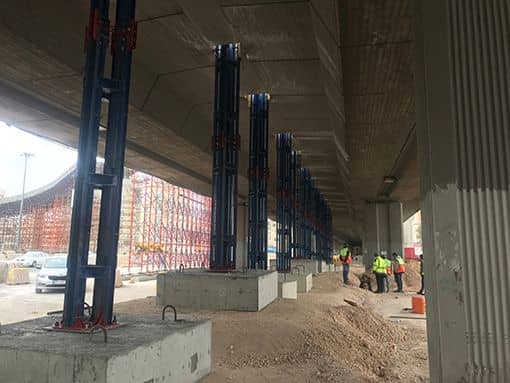

Acrow Heavy Duty Shoring is a falsework system used for the construction of heavy-load structures such as bridges and tunnels. By combining ringlock components and soldier members, the system provides stable support even under high load conditions.
The height and configuration can be adjusted to suit site-specific requirements, and pre-assembly prior to delivery helps improve installation efficiency. The system is also suitable for re-shoring and repair works, and its robust design allows it to withstand long-term use on demanding projects.
| Weight | Upon request |
|---|---|
| Load-Bearing Capacity | • Ring Lock: Up to 260 kN/post • Acrow Soldier: Up to 350 kN/post |
| Material | Upon request |
| Overall Length | • Standard soldier: 4.50 m • Upper H-jack and Lower H-jack: 50 to 70 cm |

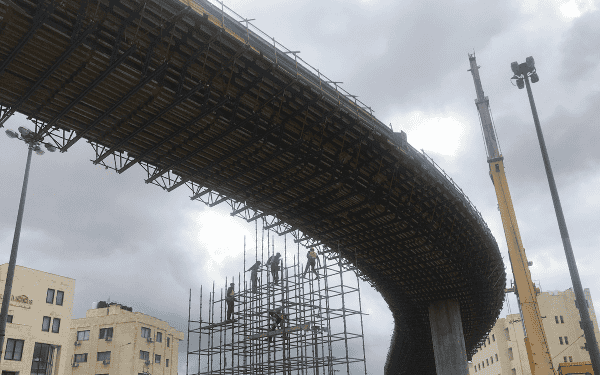

At the large-scale transportation infrastructure project “Sports City Interchange” in Amman, Jordan, Acrow’s falsework systems were used during construction.
This project was carried out as part of an intersection improvement plan associated with the development of a BRT (Bus Rapid Transit) system.
For the construction of bridge sections and elevated structures, Acrow’s falsework solutions—combined with formwork and reinforcement systems—were employed to achieve both high accuracy and efficient on-site operations.
Acrow provides comprehensive on-site assistance, from pre-assembly to final installation. Their certified technicians offer expert supervision and inspections for formwork operations, ensuring every structure meets rigorous safety standards and engineering specifications for seamless project execution.
Offering flexible procurement through direct sales or rental of premium formwork and scaffolding systems. Acrow’s commitment continues post-purchase with dedicated after-sales services, including professional overhauls and thorough cleaning to maintain equipment longevity and peak operational performance.
| Company Name | Acrow Misr for Metallic Scaffolding and Formwork |
|---|---|
| Headquarters Address | Wady Houf, Helwan, Cairo, Egypt |

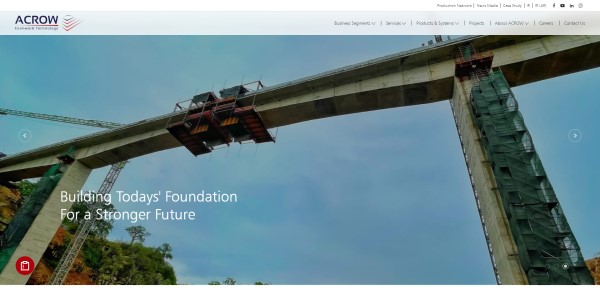

| Official Website | https://acrow.co/homepage |

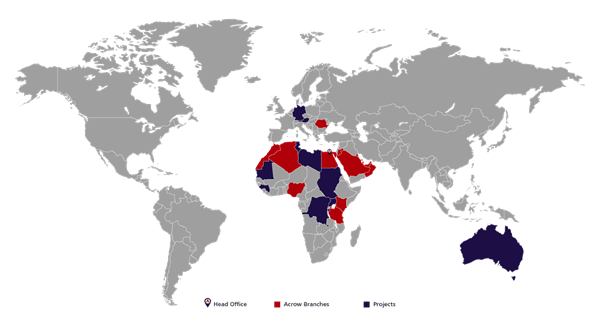

Headquartered in Egypt, Acrow Misr leverages its strategic location to serve key markets across the globe. With a proven track record of sustainable growth, the company continues to expand its international footprint through a robust network of branches and subsidiaries.
Core Regions: Extensive operations across the MENA region, Africa, and South-Eastern Europe.
Key Markets: Established branches in the UAE, Saudi Arabia (KSA), Qatar, Oman, Kuwait, Bahrain, Morocco, Algeria, Nigeria, Kenya, Tanzania, and Romania.
Strategic Growth: Ongoing expansion into new markets and product lines, including Acrow Misr Building Products (ABP) for specialized construction materials.
Source: https://www.forbuild.co.jp/material/alpa.php
| Unit Weight |
8.9/11.1 kg |
|---|---|
| Load Capacity |
19.0~36.0 kN* |
| Material | Aluminum |
| Max Length |
3,490mm |
*When the upper end is fixed to timber and the lower end to concrete
*Based on the ARPA 45 model.
Source: https://www.peri.ltd.uk/products/peri-up-flex-heavy-duty-prop-hd.html
| Unit Weight |
91.03~265.98kg |
|---|---|
| Load Capacity |
Up to 200 kN |
| Material | Steel |
| Max Length |
Approx.8,330mm |
https://www.peri.ltd.uk/dam/jcr:cb5a5bf0-8e05-4d70-b6fd-780f3cf91333/peri-up-flex-hd-prop.pdf
Source: https://www.altrad-coffrage.com/en/solutions/shoring/props/tetrashor.html
| Unit Weight |
Approx. 131–159 kg |
|---|---|
| Load Capacity |
Up to 400 kN* |
| Material | Hot-Dip Galvanized High-Tensile Steel |
| Max Length |
17,000mm* |
*Applicable to single-leg prop configuration onl
