ISCHEBECK TITAN offers a lineup of falsework props with distinct characteristics. This includes the highly versatile TITAN S for a wide range of sites, the heavy-load TITAN E35, and the Adjustable aluminium leg TITAN, which supports structures up to 24.6 meters in height.
This article summarizes the situations suitable for each type of ISCHEBECK TITAN falsework prop.

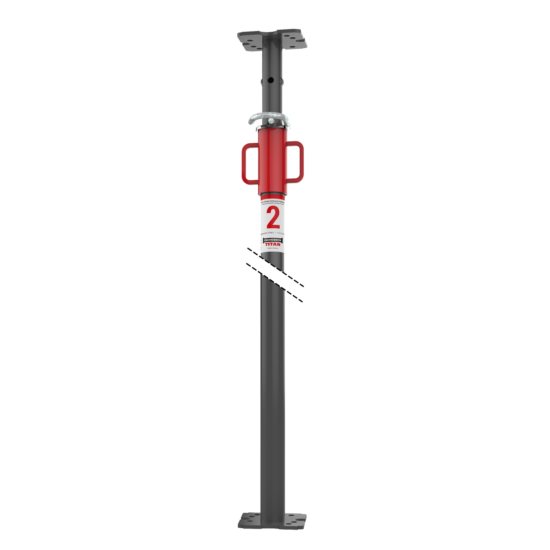

The Telescopic prop TITAN S is a versatile model for standard floor heights, suitable for a wide range of sites—from residential buildings to commercial facilities. In addition to supporting concrete floors (slabs), it also accommodates a wide range of applications such as temporarily reinforcing existing floors and supporting precast floor panels.
Four different sizes are available: 2, 3, 4, and 7. The allowable load varies depending on the extension length and the pin position of the outer tube, but generally ranges from 13.2 kN to 40.4 kN (example: approximately 40.4 kN maximum for size 4 and approximately 31.9 kN maximum for size 7). A single type can accommodate a wide range of loads, making it easier to plan the number of props.
One advantage of Telescopic prop TITAN S is that it holds German technical certifications (TITAN S: Z-8.311-998, E35: Z-8.311-1003, Mega shore joint: Z-8.22-874), reducing the need for product-specific strength verification.
| Weight | Upon request |
|---|---|
| Load-Bearing Capacity | 13.2 to 40.4 kN |
| Material | Steel (painted or galvanized) |
| Overall Length | 1.80 to 5.50 meters |
These falsework props are suitable for shortening the work cycle at projects with repetitive floor-by-floor work, such as in office buildings.

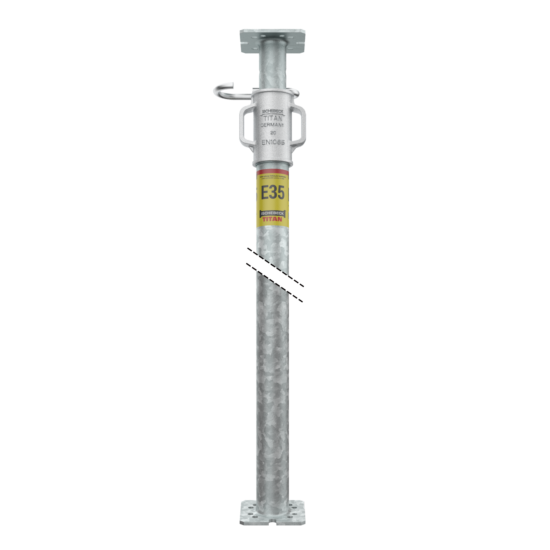

Telescopic prop TITAN E35 complies with DIN EN 1065 Class E, with a permissible load (approved value) of up to 41.5 kN, exceeding the values specified by the standard regulations.
A standout feature is its ability to bear large loads with a single unit, thereby reducing the required number of props. It features an internally protected thread, enabling smooth tightening, loosening, and dismantling. This helps reduce labor and costs for transportation, installation, and removal.
| Weight | Upon request |
|---|---|
| Load-Bearing Capacity | 31.3 to 41.5 kN |
| Material | Steel (painted or galvanized) |
| Overall Length | 2.05 to 3.50 meters |

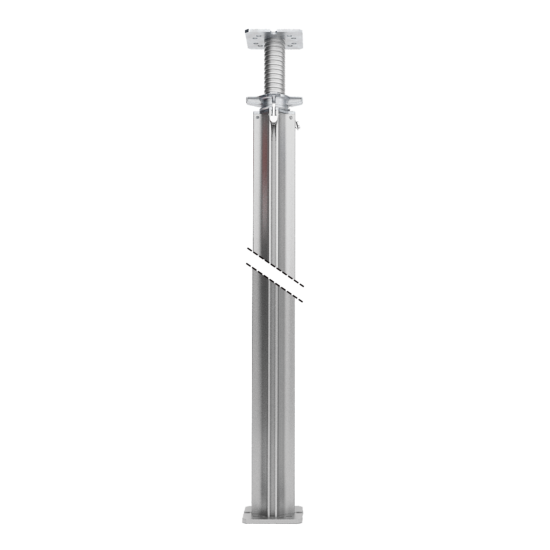

This aluminum system prop is suitable for construction sites with high ceilings, such as bridges, power plants, and atriums with open ceilings, and large spaces with wide column distances.
The components are made of lightweight aluminum, yet they offer a high load-bearing capacity of up to 128 kN per prop. In combination with dedicated frames, falsework towers with heights of up to 24.6 meters can be rapidly constructed.
Adjustable aluminium leg TITAN complies with DIN EN 16031 and has obtained various technical certifications. This ensures reliability in large-scale and complex temporary construction plans.
| Weight | Upon request |
|---|---|
| Load-Bearing Capacity | 15.9 to 96.1 kN |
| Material | Steel screw jack, aluminum outer tube |
| Overall Length | 1.75 to 4.25 meters (up to 6.10 meters in tower configuration) |
ISCHEBECK TITAN supports project planning not only through product supply but also through digital planning data. For formwork systems, the company provides DWG files and BIM-compatible Revit Families, which can be used to visualize alternative layouts and coordinate temporary works within the overall construction plan. For contractors and engineering teams handling falsework props, this kind of support is useful when checking installation space, member arrangement, and interference with surrounding structures before work begins.
The company also offers a design tool through its smartTITAN service. According to the official website, the company can carry out structural calculations for the TITAN Megashore system in compliance with building regulations, including situations that go beyond standard type testing. This is a practical service for projects where loading conditions, span requirements, or site constraints are too complex to address with a simple standard configuration.
| Company Name | FRIEDR. ISCHEBECK GmbH |
|---|---|
| Headquarters Address | Loher Straße 31–79, 58256 Ennepetal, Germany |
| Official Website | https://www.ischebeck.de |
ISCHEBECK TITAN covers a worldwide service area: its products are made available worldwide via its subsidiaries, and it provides country-specific contact information for markets across Europe, Asia-Pacific, North America, and South America.
This indicates that customers can make inquiries not only in countries with established subsidiaries, but also in other regions through the company’s export department. For overseas projects requiring shoring props, falsework props, or related temporary works systems, this coverage can be an advantage when confirming product availability, technical consultation, and the appropriate point of contact.
Source: https://www.forbuild.co.jp/material/alpa.php
| Unit Weight |
8.9/11.1 kg |
|---|---|
| Load Capacity |
19.0~36.0 kN* |
| Material | Aluminum |
| Max Length |
3,490mm |
*When the upper end is fixed to timber and the lower end to concrete
*Based on the ARPA 45 model.
Source: https://www.peri.ltd.uk/products/peri-up-flex-heavy-duty-prop-hd.html
| Unit Weight |
91.03~265.98kg |
|---|---|
| Load Capacity |
Up to 200 kN |
| Material | Steel |
| Max Length |
Approx.8,330mm |
https://www.peri.ltd.uk/dam/jcr:cb5a5bf0-8e05-4d70-b6fd-780f3cf91333/peri-up-flex-hd-prop.pdf
Source: https://www.altrad-coffrage.com/en/solutions/shoring/props/tetrashor.html
| Unit Weight |
Approx. 131–159 kg |
|---|---|
| Load Capacity |
Up to 400 kN* |
| Material | Hot-Dip Galvanized High-Tensile Steel |
| Max Length |
17,000mm* |
*Applicable to single-leg prop configuration onl
