Among the Altrad Group, which operates 120 subsidiaries globally*, this article provides an explanation of the products from RMD Kwikform, a company specializing in the provision of falsework prop systems.
Case studies are also included, so please use them as reference materials for comparison and evaluation.
*As of October 2025
*The following products are part of the RMD Kwikform lineup.

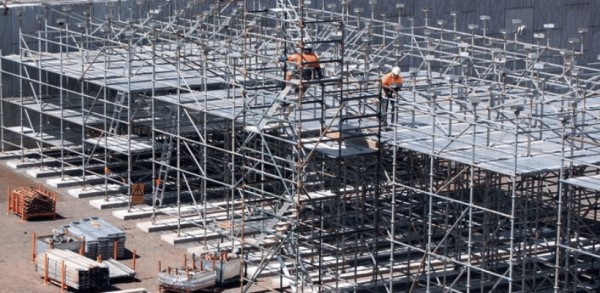

Rapidshor is a modular heavy-duty falsework prop system.
It uses high-strength steel with high-durability specifications featuring galvanized treatment applied to the main components. This makes it suitable for long-term outdoor use.
The modular design and integrated connection structure enables efficient assembly with fewer components. The system offers high structural rigidity, effectively restraining lateral displacement caused by wind loads or uneven ground conditions, and maintains stability even during long-term installations.
The tilt-head and base allow for adaptation to inclined surfaces. This makes it possible to provide stable support in large-scale constructions such as bridges, tunnels, and heavy slabs.
Additionally, thanks to its reduced number of components and efficient assembly and dismantling, Rapidshor helps shorten construction time.
| Weight | ・Rapidshor Standards Rapidshor Standard 1500 mm: 8.3kg Rapidshor Standard 2500 mm: 15.1 kg Standard OE 675 mm: 3.0 kg Standard OE 1000 mm: 5.4 kg Standard OE 1500 mm: 8.0 kg Standard OE 2000 mm: 10.8 kg Standard OE 2500 mm: 13.5 kg |
|---|---|
| Load-Bearing Capacity | Per leg: 80 kN 4-leg tower: 320 kN |
| Material | Hot-dip galvanized high-tensile steel |
| Overall Length | Vertical post: 0.675 m ~ 2.5 m Horizontal member: 1.2 m ~ 3.0 m |

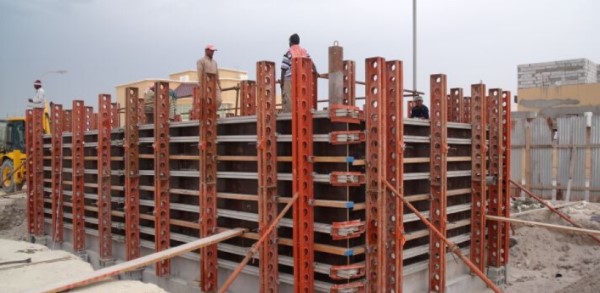

Superslim Soldier is a falsework prop system made of high-strength steel. The primary components are galvanized to enhance their anti-rust properties. This creates a highly durable structure suitable for reuse and extended outdoor use.
Despite being lightweight, Superslim Soldier offers high rigidity. This allows it to be used alone as a beam or combined into frame and truss structures to form a wide range of temporary structures. The ability to freely combine different lengths allows Superslim Soldier to be designed to meet specific site conditions.
With high load-bearing performance and flexible adaptability, it supports construction efficiency and safety in large-scale projects such as bridges and tunnels.
| Weight | 7.32 kg (90 mm) ~ 72.18 kg (3,600 mm) |
|---|---|
| Load-Bearing Capacity | It depends on the application (e.g., Anchor Plate: Tension 70kN / Shear 90kN) |
| Material | High-tensile steel |
| Overall Length | 90 mm、180 mm、360 mm、540 mm、720 mm、900 mm、1260 mm、1800 mm、2700 mm、3600 mm |
*The following case study pertains to the falsework prop systems offered by RMD Kwikform

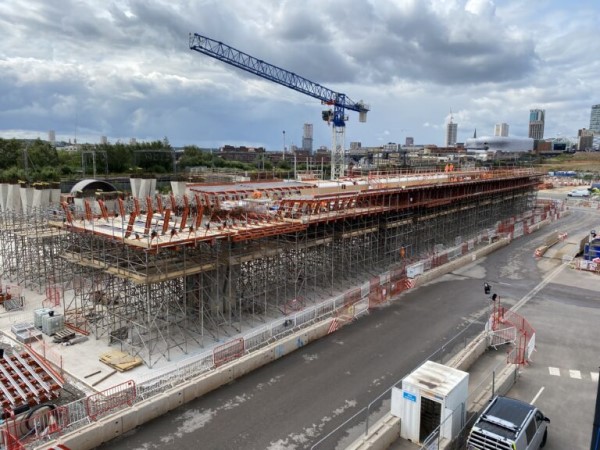

Altrad RMD Kwikform’s falsework prop system was used in the construction of the viaduct for Curzon Street Station, part of the HS2 high-speed rail project in Birmingham, United Kingdom. Systems such as Rapidshor and Superslim Soldier were combined to accommodate complex curved structures and heavy loads.
While ensuring stability during construction, it also improved efficiency in assembly and dismantling. The design enables the reuse of structural components, thereby contributing to on-site safety and cost reduction in operations.
Altrad RMD Kwikform provides flexible procurement options, offering both brand-new engineering components and high-quality "ex-hire" (used) equipment. Every pre-owned item is rigorously inspected and maintained to ensure peak safety, providing a cost-effective solution without compromising on structural integrity or performance.
Beyond equipment, Altrad delivers elite technical expertise, including advanced maintenance engineering and project management. Their professional services empower designers and contractors with bespoke structural calculations, safety audits, and integrated industrial solutions, ensuring complex construction projects are executed with maximum efficiency and precision.
| Company Name | Altrad RMD Kwikform |
|---|---|
| Headquarters Address | UK Head Office Foundation House, Brickyard Road, Aldridge, Walsall, WS9 8BW |
| Official Website | https://www.rmdkwikform.com/hk/ |

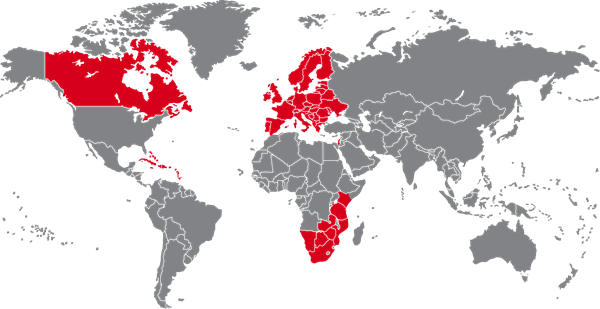

Altrad RMD Kwikform combines a strong UK heritage with a powerful international presence, serving key regions including Europe, Scandinavia, the Caribbean, Israel, Canada, and Southern Africa.
Supported by a global network of 14 operating companies, they ensure that essential engineering equipment is delivered "on time and in full" to even the most remote locations. Their expertise spans across diverse sectors, providing critical shoring and formwork solutions for major infrastructure like bridges, tunnels, and power stations, as well as high-rise commercial developments and sporting arenas.
Beyond logistics, Altrad offers elite on-site assistance; their trained technicians provide real-time problem-solving and comprehensive training to ensure maximum efficiency and unwavering safety standards on every project.
Source: https://www.forbuild.co.jp/material/alpa.php
| Unit Weight |
8.9/11.1 kg |
|---|---|
| Load Capacity |
19.0~36.0 kN* |
| Material | Aluminum |
| Max Length |
3,490mm |
*When the upper end is fixed to timber and the lower end to concrete
*Based on the ARPA 45 model.
Source: https://www.peri.ltd.uk/products/peri-up-flex-heavy-duty-prop-hd.html
| Unit Weight |
91.03~265.98kg |
|---|---|
| Load Capacity |
Up to 200 kN |
| Material | Steel |
| Max Length |
Approx.8,330mm |
https://www.peri.ltd.uk/dam/jcr:cb5a5bf0-8e05-4d70-b6fd-780f3cf91333/peri-up-flex-hd-prop.pdf
Source: https://www.altrad-coffrage.com/en/solutions/shoring/props/tetrashor.html
| Unit Weight |
Approx. 131–159 kg |
|---|---|
| Load Capacity |
Up to 400 kN* |
| Material | Hot-Dip Galvanized High-Tensile Steel |
| Max Length |
17,000mm* |
*Applicable to single-leg prop configuration onl
