Site Equipment is a UK-based provider of temporary equipment rental services, known for its nationwide distribution network, fast turnaround, and in-house engineers who support temporary works design. The company’s service system is unique for its contribution to reducing on-site lead times, from urgent equipment procurement to assessment of specification suitability.
This article summarizes key features of Site Equipment Limited’s services and provides examples of products available for rent.
Site Equipment has established supply bases (depots) in major areas within the United Kingdom (Bristol, Cardiff, London) to facilitate nationwide distribution. With extended operating hours at each depot, Site Equipment can offer flexible delivery time slots. This enables a system that can quickly source and deliver equipment to meet urgent requirements for unplanned reinforcement work.
Upon receiving an inquiry, Site Equipment first ascertains the site requirements through a free on-site inspection. By having specialized staff directly inspect the site and consider provisional designs, the company reduces the risks and rework caused by under- or over-specifying equipment orders.
This company is characterized by its ability to accelerate on-site procedures and mitigate the risk of project delays through a coordinated process spanning inquiry and on-site inspection to design, delivery, and collection.
Site Equipment employs engineers with specialized knowledge in the civil and structural fields, providing temporary design services integrated with procurement.
The company is capable of accommodating the design reviews required by supervisory authorities and principal contractors. It can also prepare the technical documentation required for approval, including temporary works drawings and structural calculation sheets. Site Equipment reduces the risk of construction delays caused by documentation errors and verification processes. This helps project managers spend less time on paperwork.
These are adjustable props used for the temporary support of formwork panels and precast walls. They serve two main purposes. First, they provide diagonal bracing to prevent the wall from toppling under wind loads. Second, they allow alignment adjustment to ensure the wall remains plumb.
These props are designed to withstand both compressive and tensile forces. Its load capacity is approximately 10 to 35 kN, depending on the size (values are approximate).
Furthermore, T-connectors can be combined with other temporary equipment, including the Slimshore system (a robust falsework system designed to support heavier loads). This expands the range of support structures that can be assembled.
Acrow Props are widely used in temporary works to provide vertical support for walls, slabs, beams, and formwork. They are intended for vertical support only and are not recommended for horizontal applications; for horizontal support, Slimshore is typically preferred.
The range is available in Type 0 through Type 4. It is capable of accommodating heights from approximately 1.82 to 4.87 meters. The allowable load varies depending on the height. For example, it has a maximum support capacity of approximately 3.5 tons (approximately 35 kN). However, when used at a height of 3 meters, approximately 1.8 tons is the recommended guideline.
They also feature plates for securing the props to floors and slabs, and fittings that allow reinforcement using scaffolding tubes.
| Company Name | Site Equipment Limited |
|---|---|
| Headquarters Address | St Andrews Road, Avonmouth, Bristol, BS11 9HS (Registered Office) |

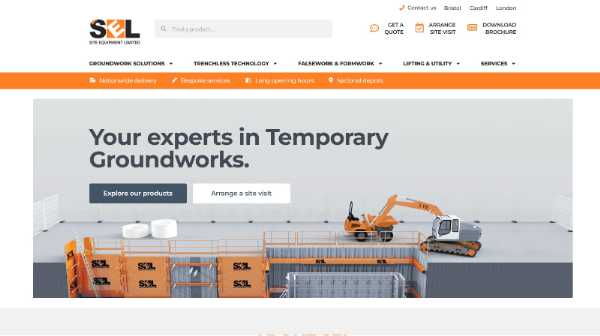

| Official Website | https://www.siteequipment.co.uk/ |
Source: https://www.forbuild.co.jp/material/alpa.php
| Unit Weight |
8.9/11.1 kg |
|---|---|
| Load Capacity |
19.0~36.0 kN* |
| Material | Aluminum |
| Max Length |
3,490mm |
*When the upper end is fixed to timber and the lower end to concrete
*Based on the ARPA 45 model.
Source: https://www.peri.ltd.uk/products/peri-up-flex-heavy-duty-prop-hd.html
| Unit Weight |
91.03~265.98kg |
|---|---|
| Load Capacity |
Up to 200 kN |
| Material | Steel |
| Max Length |
Approx.8,330mm |
https://www.peri.ltd.uk/dam/jcr:cb5a5bf0-8e05-4d70-b6fd-780f3cf91333/peri-up-flex-hd-prop.pdf
Source: https://www.altrad-coffrage.com/en/solutions/shoring/props/tetrashor.html
| Unit Weight |
Approx. 131–159 kg |
|---|---|
| Load Capacity |
Up to 400 kN* |
| Material | Hot-Dip Galvanized High-Tensile Steel |
| Max Length |
17,000mm* |
*Applicable to single-leg prop configuration onl
