Safeweld Fabrications

Commercial	✓	DIY	✓
Sales	✓	Rental	-

Safeweld Fabrications is a family-owned manufacturer and supplier serving the UK construction and scaffolding industries. Based in the West Midlands, the company develops products in-house and sells construction products through its online store.

Its adjustable prop lineup includes Acrow Props for temporary vertical support and Push-Pull Props for angled support in formwork and falsework applications. The official website does not list rental services.

Source: Safeweld Fabrications – About Us

Key Shoring Solutions from Safeweld Fabrications

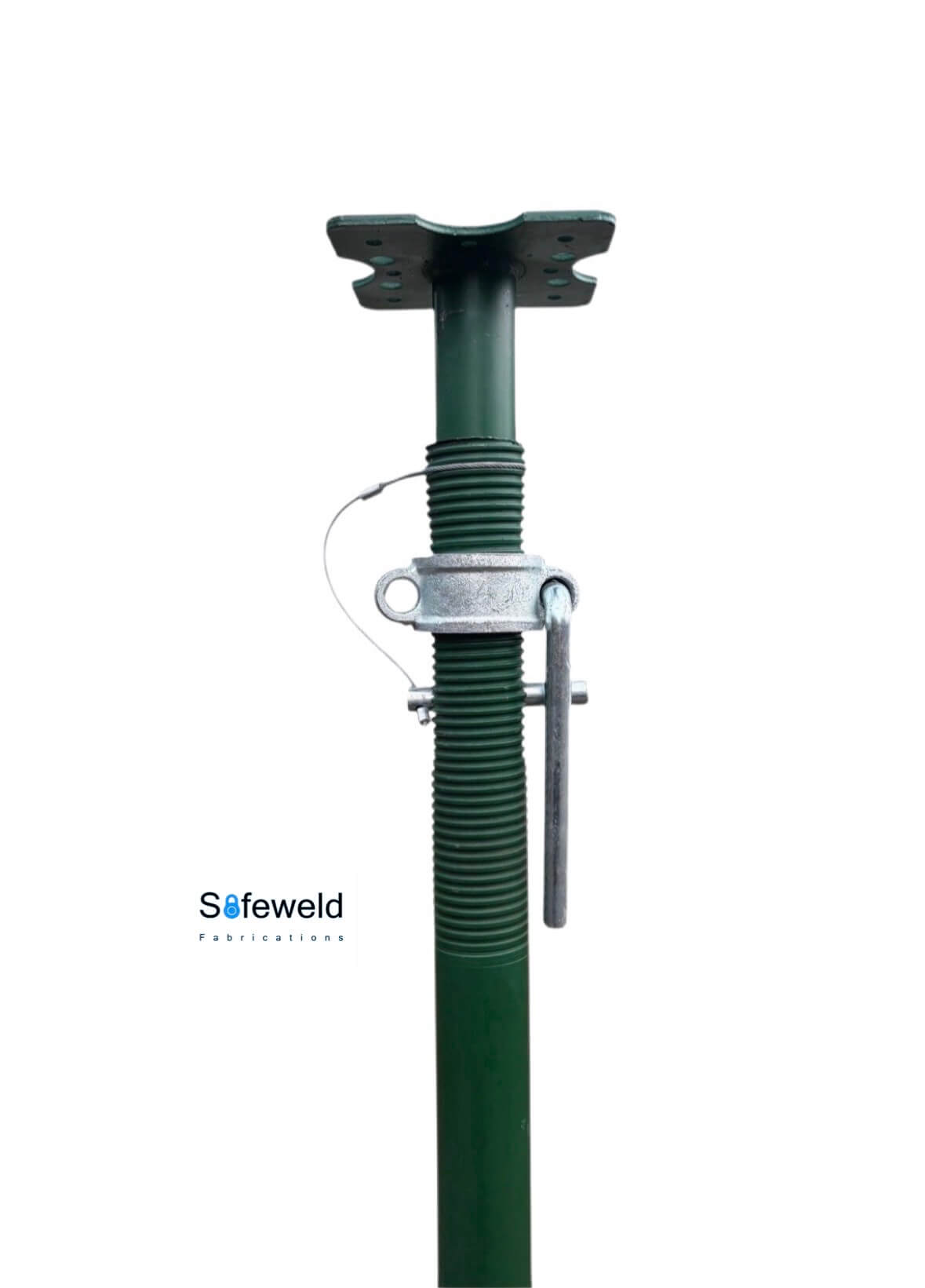

Heavy Duty Acrow Props

When to Use Heavy Duty Acrow Props

Heavy Duty Acrow Props are adjustable temporary supports designed to support floors, walls, and lintels. They can also be used with Safeweld's Strong Boy Supports, making them suitable for temporary support around wall openings and during masonry work.

According to Safeweld, the props feature 150 mm square top and bottom plates, a 60.3 mm outer tube, and a 48.3 mm inner tube. The threaded section is friction-welded to provide strength while reducing weight compared with conventional props.

Sizes 0, 1, and 2 are available, giving contractors a choice of adjustment ranges for renovation projects, wall-opening work, and general construction. Load-bearing capacity is not listed on the official product page. A qualified temporary works professional should confirm prop spacing, loads, and installation requirements before use.

Weight	9.96–16.75 kg, depending on size
Load-Bearing Capacity	Not listed on the website
Material	Steel tubes
Overall Length	1,070–3,352 mm, depending on size

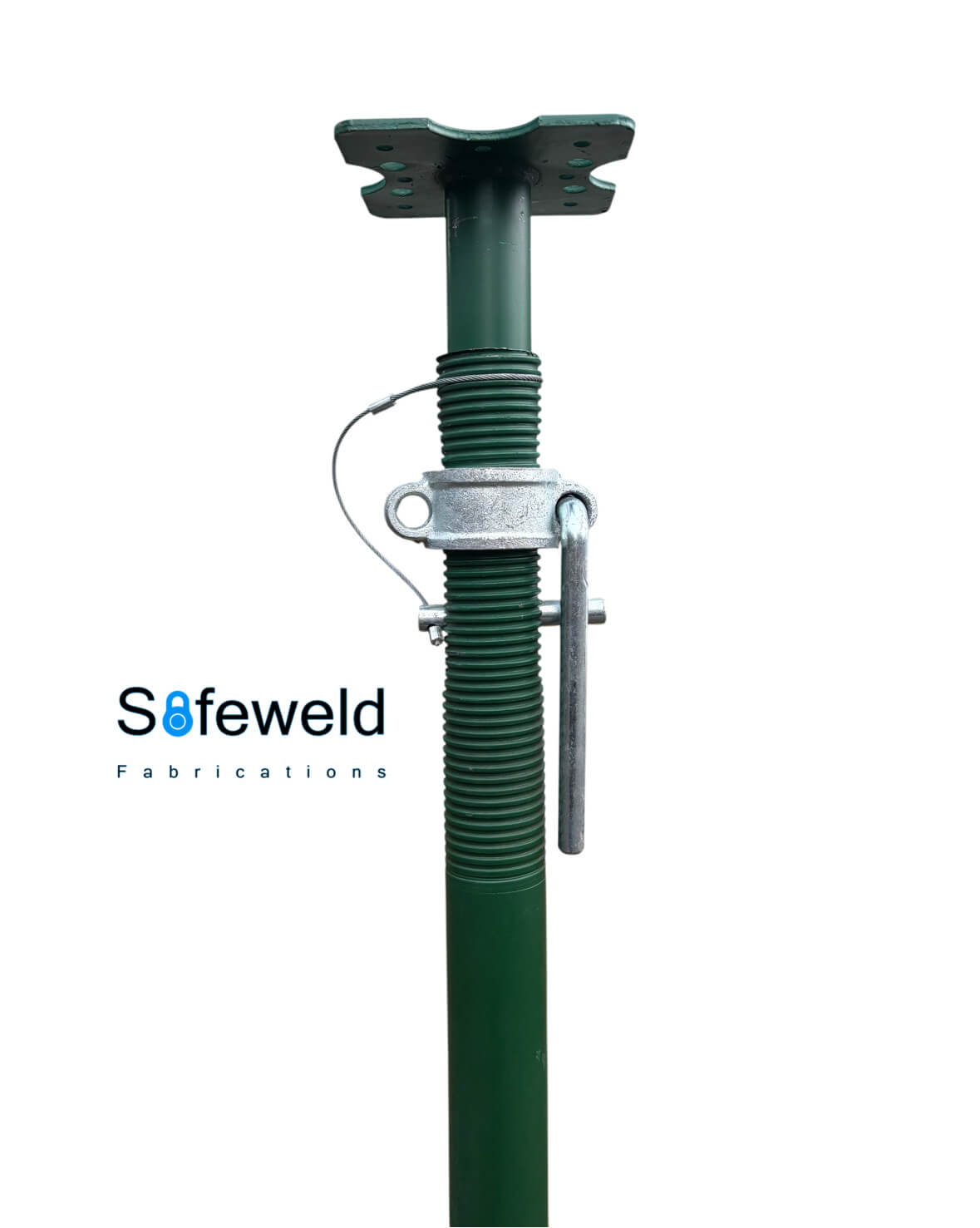

Size 3 Adjustable Acrow Props (2.59–3.96 Metre)

When to Use Size 3 Adjustable Acrow Props

The Size 3 Adjustable Acrow Prop is designed to support floors, walls, and lintels where a longer adjustment range is needed. Its published closed length is 2,590 mm and its extended length is 3,962 mm, providing greater vertical reach than the smaller Acrow Prop sizes listed by Safeweld.

The Size 3 prop may be suitable for temporary works involving higher openings, elevated floor work, and other applications that fall within its adjustment range. Safeweld lists the height and width as 150 mm and the unit weight as 17.6 kg.

The official product page states that Size 3 props are supplied on pallets and that items longer than 2.2 m may require assistance with manual unloading or the use of a forklift. Site access and unloading requirements should therefore be confirmed before ordering. The official website does not list a load-bearing capacity or material specification for this product.

Weight	17.6 kg
Load-Bearing Capacity	Not listed on the website
Material	Not listed on the website
Overall Length	2,590–3,962 mm

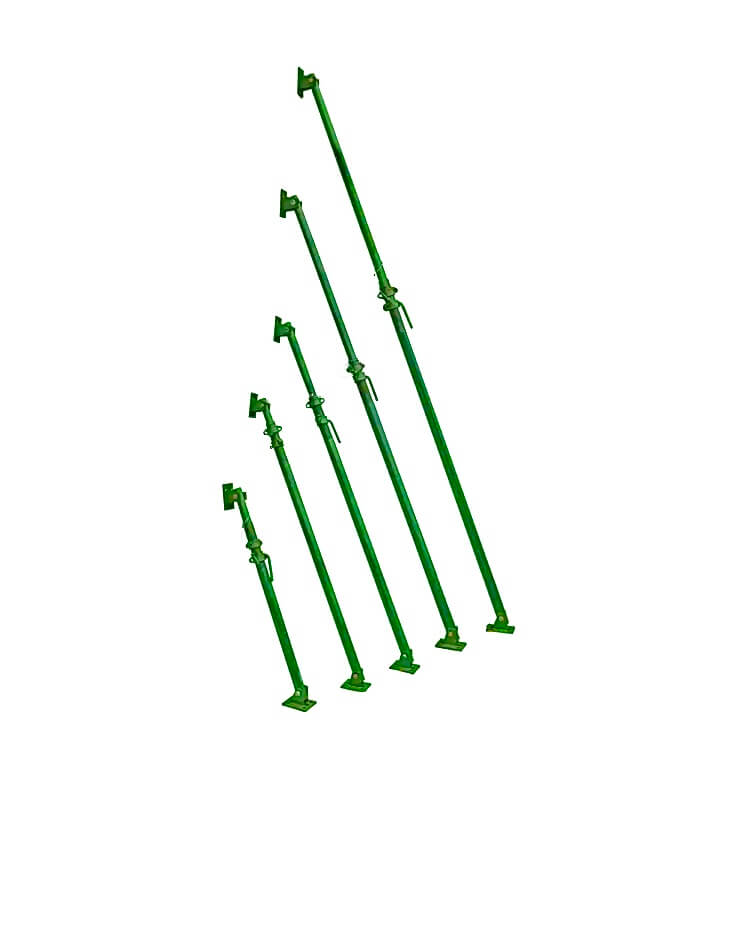

Adjustable Push-Pull Props

When to Use Adjustable Push-Pull Props

Adjustable Push-Pull Props are designed to provide angled support for formwork and falsework. The range is available in sizes 0 through 4, allowing contractors to select a prop length that fits the planned temporary support configuration.

Each prop includes a standard prop collar and an additional locking collar designed to maintain rigidity. Safeweld also describes a heavy-duty steel construction with swiveling plates on both the inner and outer tubes, allowing the props to be secured at different angles.

Published specifications include a dark green painted finish, a 150 × 150 × 12 mm base plate, and a 150 × 90 × 12 mm head plate. Load-bearing capacity is not listed on the official website. Engineers and project teams should verify design loads, connection details, and bracing requirements before specifying these props.

Weight	15.8–31.6 kg, depending on size
Load-Bearing Capacity	Not listed on the website
Material	Steel
Overall Length	Closed: 1.140–3.300 m Open: 1.829–4.876 m

Safeweld Fabrications Props in Use

The official website does not list specific project case studies or installation examples featuring Safeweld Fabrications props.

Support Services from Safeweld Fabrications

For Commercial Projects and Contractors

Safeweld Fabrications supplies products to the construction and scaffolding industries and states that its team can answer product questions and help customers identify an appropriate product or solution. Customers can contact the company by phone, email, or through its website contact form.

Product and Delivery Inquiries

Safeweld notes that large orders and certain products may require special transportation arrangements. If a shipping cost cannot be calculated at checkout, customers can contact the company for a custom delivery quote. Large shipments may also require separate unloading arrangements.

Source: Safeweld Fabrications – About Us
Source: Safeweld Fabrications – Delivery & Returns

For Local Builders and DIY Projects

Safeweld Fabrications sells products through its online store, and its purchase and returns policy covers goods purchased by both individuals and companies. However, the official website does not describe dedicated DIY consulting, site survey, or rental services.

Before You Order

Local builders and DIY customers should confirm product dimensions, site access, transportation requirements, and unloading arrangements before placing an order. Temporary support design, installation, and loading requirements should be reviewed by a qualified professional.

Safeweld Fabrications Company Information

Company Name	Safeweld Fabrications Ltd
Headquarters Address	Heron Drive, Penkridge, Staffordshire, ST19 5UD, United Kingdom

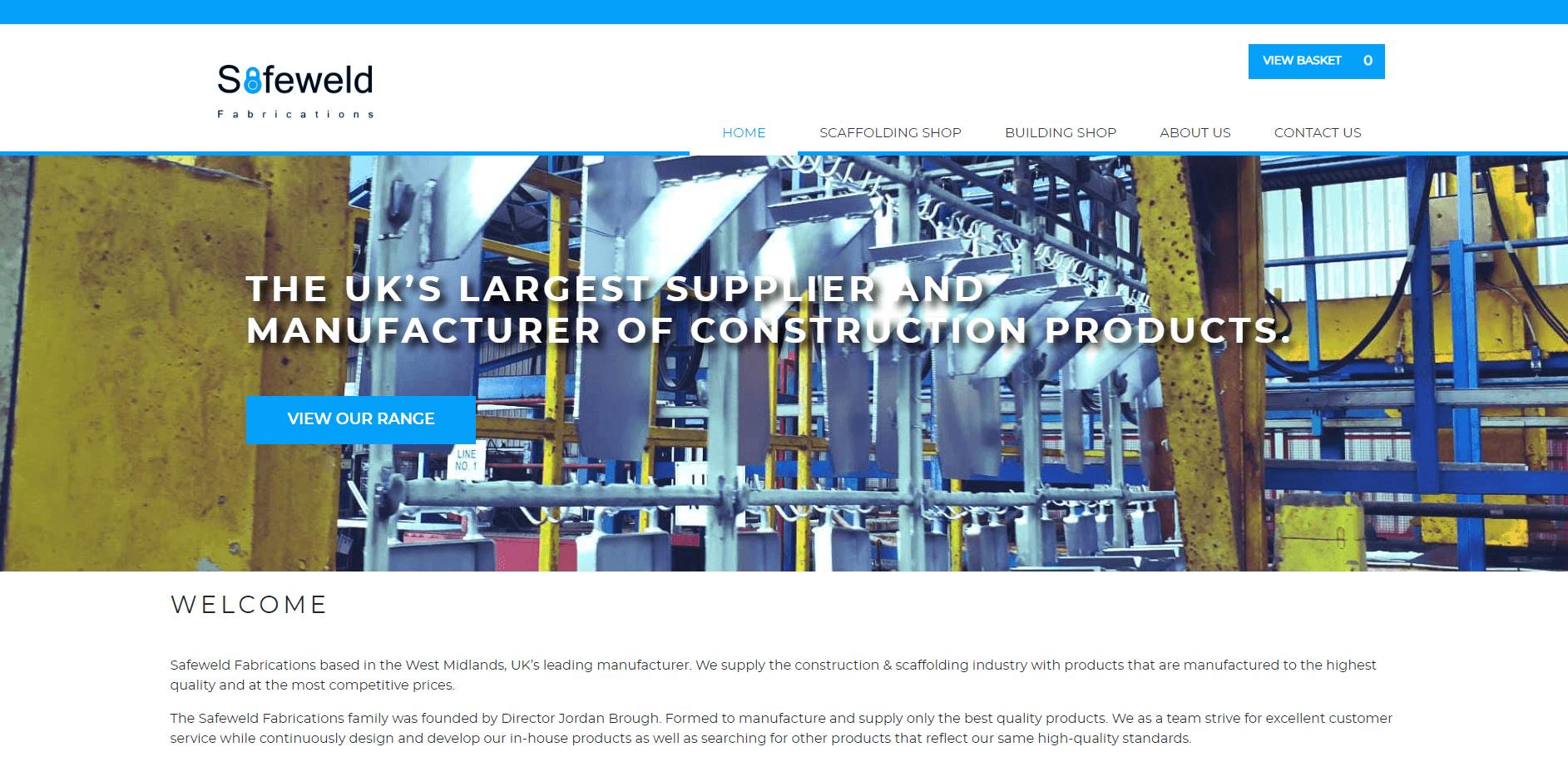

Official Website	https://safeweldfabrications.co.uk/

Service Area

Safeweld Fabrications describes its business as serving the UK construction and scaffolding industries. Its official delivery policy covers carrier delivery and custom delivery quotes when shipping costs cannot be calculated at checkout. The official website does not list specific international service areas.

Source: Safeweld Fabrications – About Us
Source: Safeweld Fabrications – Delivery & Returns
Source: Safeweld Fabrications – Contact Us
