Doka is a global manufacturer of formwork and falsework systems, headquartered in Austria. The company develops high-performance falsework props and slab formwork systems that are used on construction sites worldwide, helping contractors achieve both higher productivity and improved safety.
Among its product lineup, the Eurex series—known for its lightweight design and high load-bearing capacity—and Dokadek 30, a panel-type system used in combination with props, are particularly well suited to projects where fast and efficient slab construction is required.
This article introduces some of the representative falsework props offered by Doka, along with real-world examples of their application.

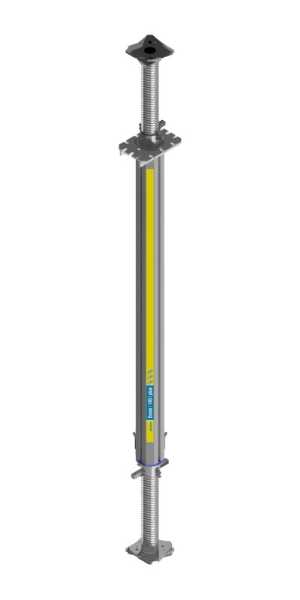

The Eurex 100 plus is an aluminum prop designed for slab falsework applications. It can support loads of up to 128 kN, and even the longest model weighs only around 29 kg, making it easy to erect and dismantle, even when working at height.
Height adjustment is quick and straightforward thanks to the quick-motion screw, while the self-cleaning thread design prevents concrete buildup.
This reduces the risk of thread binding, eliminates the need for cleaning, and ensures smooth loosening during dismantling, allowing for an immediate transition to the next construction phase.
The prop is also well suited to repeated use and frequent re-shuttering. It is particularly easy to handle on fast-cycle sites, such as falsework for beams and ceiling slabs.
Its lightweight construction reduces the physical burden of manual handling and height adjustment, helping to achieve both improved safety and higher work efficiency.
| Weight | 290: 18.4 kg 410: 22.4 kg 550: 29.4 kg |
|---|---|
| Load-Bearing Capacity | 128 kN |
| Material | Aluminium |
| Overall Length | 290: 170 to 290 cm 410: 290 to 410 cm 550: 430 to 550 cm |

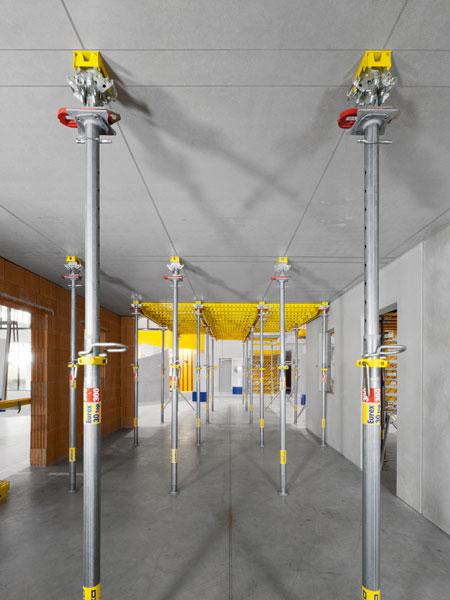

Dokadek 30 is well suited to slab construction that primarily uses Eurex series props for falsework.
By combining Dokadek 30 with props such as the Eurex 30 top or Eurex 20 top, the system allows the formwork panels to be stripped at an early stage while leaving the props in place after concreting. Thanks to the drop-head design, the props can be reused efficiently, shortening the overall reuse cycle.
The system fully utilizes the load capacity of the props while combining lightweight panels with efficient assembly. As a result, it enables efficient falsework planning for large-area slab construction and sites with repetitive work cycles.
| Weight |
• Eurex 30 top |
|---|---|
| Load-Bearing Capacity | • Eurex 30 top prop: 38 kN (Representative value with a safety factor of 3:1. Depending on the model and extension length, the capacity generally ranges from approx. 30 to 41.2 kN.) • Infill beam: Allowable moment 5 kNm, Allowable shear force 11 kN, Load capacity with central support: 22 kN • Suspension Clamp H20: Allowable shear force 11 kN • Applicable slab thickness (by panel size) 8' × 4': Up to 30 cm 4' × 2'-8": Up to 45 cm *With additional measures, slab thicknesses of up to 50 cm are possible. A simple assumption of “up to 32 cm” is not acceptable. |
| Material | • Props: Steel, galvanized • Panels: Galvanized steel frame with yellow painted finish • Wood-plastic composite sheet (riveted) • Drop head: Finished surface |
| Overall Length | • Eurex 30 top 250: 148 to 250 cm 300: 173 to 300 cm 350: 198 to 350 cm 400: 223 to 400 cm 450: 248 to 450 cm 550: 303 to 550 cm *Use at full extension is not permitted • Eurex 20 top 550: 298 to 550 cm Panel dimensions: 8' × 4' (2.44 × 1.22 m), 4' × 2'-8" (1.22 × 0.81 m) |
At the construction site of the HTL St. Pölten technical high school building in Austria, Dokadek 30 was used for slab construction covering an area of approximately 17,000 m².
With crane use being limited, a hand-set system combined with Eurex falsework props was adopted, achieving a high installation speed of about 12 minutes per square meter. Since all work could be carried out from floor level, the need for working at height was reduced, contributing to improved site safety.
The system also proved easy to adapt to acute wall angles and complex floor layouts, allowing re-use and infill areas to be handled smoothly. Thanks to the Xlife sheet, the finished concrete surface was uniform and visually high quality. Overall, the solution was highly regarded for successfully combining construction quality with excellent work efficiency.

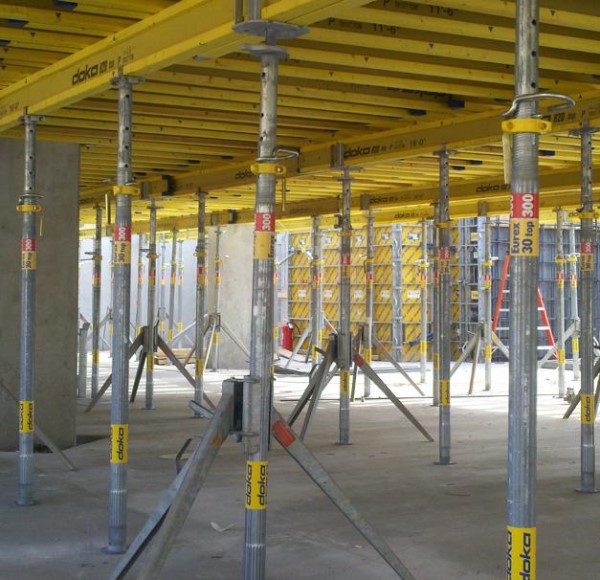

At the CityCentre project in Houston, Texas, USA, Dokaflex S was selected for the construction of a two-level parking structure and the surrounding multi-residential buildings.
The project features a layout with a residents’ swimming pool at the center and was completed within 12 months. The solution flexibly accommodated slabs with varying story heights, enabling efficient concrete placement.
The lightweight panels and simple assembly concept of Dokaflex helped reduce working time. Even in the restricted working spaces around the residential buildings, the system enabled high-precision slab construction.
Doka offers a Product Carbon Footprint (PCF) service that highlights the environmental performance of its products. According to the official website, the company has conducted life cycle assessments in accordance with ISO 14044 for more than 7,000 products and has provided customers with carbon footprint data since 2022. This allows product-related CO₂ emissions to be visualized and compared using standardized data.
This service reflects Doka’s emphasis on combining temporary works solutions with sustainability-related information, making it easier to evaluate products not only by performance but also by environmental impact.
Doka also provides project management support that covers the entire process from planning through execution and completion. On its official website, the company describes a single-source service for products, planning, project management, and logistics, with support for project development, scheduling, calculations, risk assessment, and site coordination.
Doka supports not only product delivery but also the coordination and management surrounding formwork projects as a whole.
| Company Name | Doka GmbH |
|---|---|
| Headquarters Address | Austria, 3300 Amstetten, Josef Umdasch Platz 1 |

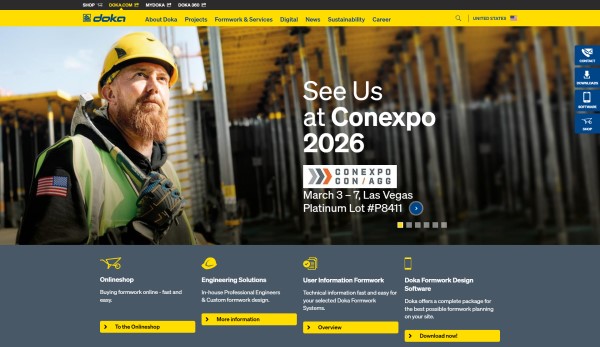

| Official Website | https://www.doka.com/ |
Doka has established a global service network. On its official website, the company refers to worldwide contacts and a worldwide logistics network that supports construction projects across different regions. The site also emphasizes proximity to construction sites and coordinated delivery and return handling.
Overall, Doka has established an international support structure for supplying formwork, falsework props, and related services across multiple markets.
Source: https://www.forbuild.co.jp/material/alpa.php
| Unit Weight |
8.9/11.1 kg |
|---|---|
| Load Capacity |
19.0~36.0 kN* |
| Material | Aluminum |
| Max Length |
3,490mm |
*When the upper end is fixed to timber and the lower end to concrete
*Based on the ARPA 45 model.
Source: https://www.peri.ltd.uk/products/peri-up-flex-heavy-duty-prop-hd.html
| Unit Weight |
91.03~265.98kg |
|---|---|
| Load Capacity |
Up to 200 kN |
| Material | Steel |
| Max Length |
Approx.8,330mm |
https://www.peri.ltd.uk/dam/jcr:cb5a5bf0-8e05-4d70-b6fd-780f3cf91333/peri-up-flex-hd-prop.pdf
Source: https://www.altrad-coffrage.com/en/solutions/shoring/props/tetrashor.html
| Unit Weight |
Approx. 131–159 kg |
|---|---|
| Load Capacity |
Up to 400 kN* |
| Material | Hot-Dip Galvanized High-Tensile Steel |
| Max Length |
17,000mm* |
*Applicable to single-leg prop configuration onl
