EK Scaffolding

Commercial	✓	DIY	✓
Sales	✓	Rental	-

EK Scaffolding is a Nanjing-based manufacturer of scaffolding and formwork systems. The company states that it began operations in 2011 and supplies steel props, scaffolding systems, formwork systems, and related construction products to international markets.

Its steel prop manufacturing process includes laser cutting, automated welding, tube reaming, and surface treatment. EK also publishes SGS test reports for selected heavy-duty prop products.

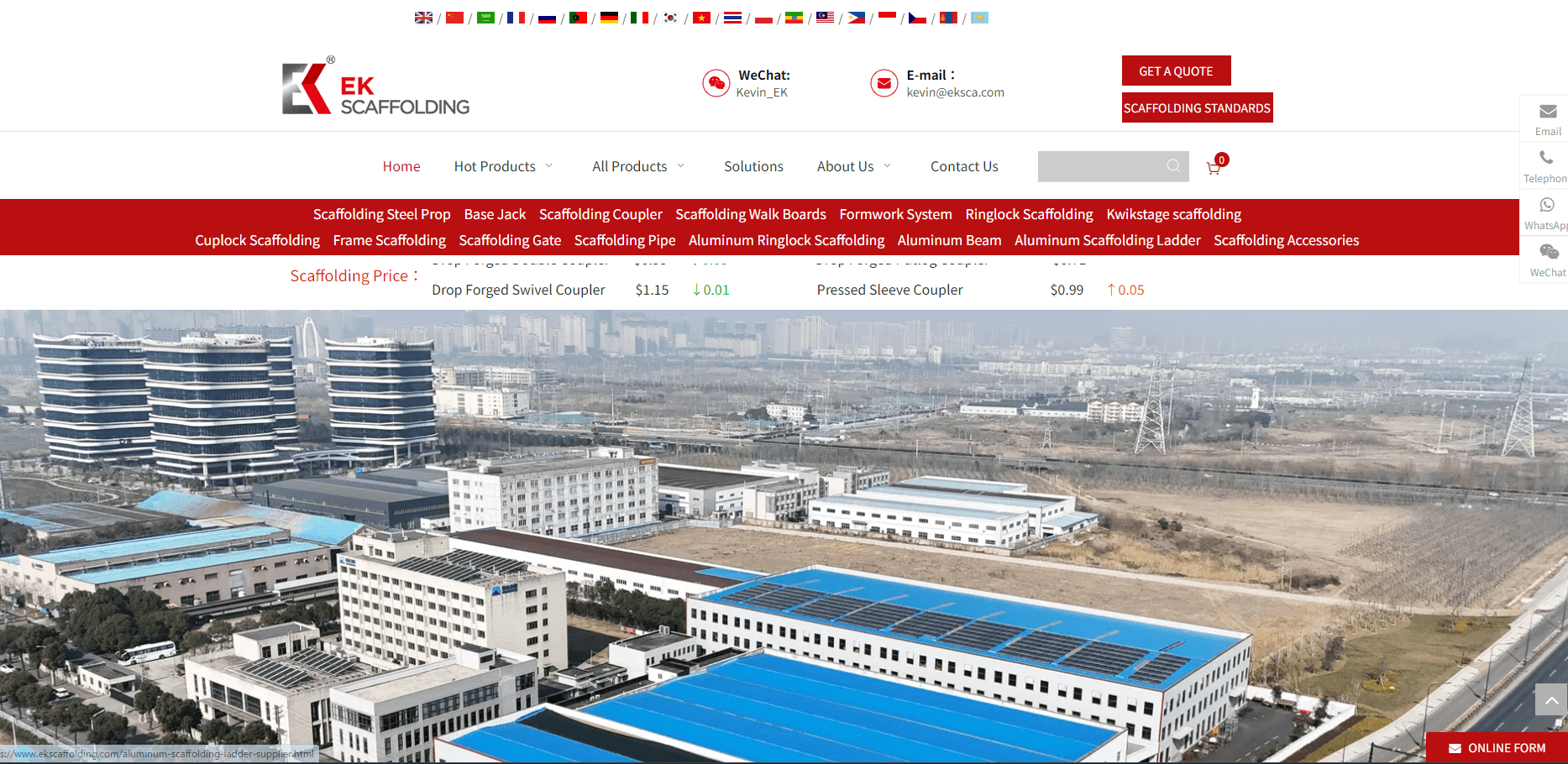

Source: EK Scaffolding Official Website
Source: EK Scaffolding – Steel Props

Key Shoring Solutions from EK Scaffolding

Galvanized or Painted Adjustable Scaffolding Acrow Prop

When to Use Adjustable Scaffolding Acrow Props

This adjustable Acrow Prop has a published working range of 2,572–3,872 mm. EK lists a 48.3 mm × 2.0 mm tube, a 120 mm × 120 mm × 4 mm plate, and a unit weight of 12.6 kg. EK offers painted, galvanized, hot-dip galvanized, and powder-coated finishes.

EK identifies ceilings, trenches, and walls as applications for temporary support with its post shores. The product may therefore suit construction, interior construction, or DIY projects that require adjustable temporary support within the listed range.

EK lists Q235 or Q345 steel as the main material, depending on the specification. The product page does not provide a specific load-bearing capacity. Contractors should verify the selected prop configuration, spacing, supported load, and temporary support design before installation.

Weight	12.6 kg
Load-Bearing Capacity	Not listed on the website
Material	Q235 or Q345 steel
Overall Length	2,572–3,872 mm

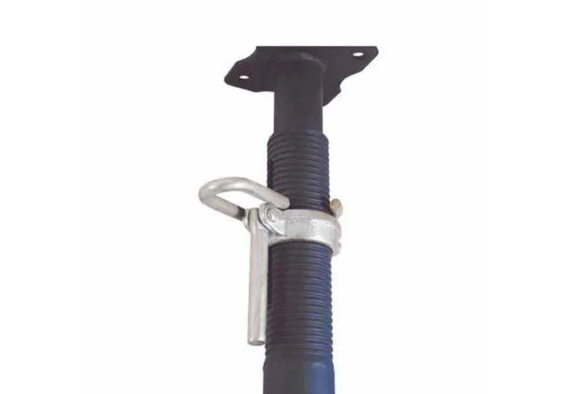

Adjustable Scaffolding Steel Prop

When to Use Adjustable Scaffolding Steel Props

EK's Adjustable Scaffolding Steel Prop is a light-duty model with an adjustment range of 3,200–4,875 mm. It uses a 48.3 mm × 2.0 mm tube, a 120 mm × 120 mm × 4 mm plate, and Q235 carbon steel. EK lists a unit weight of 15.3 kg.

EK describes shore posts as adjustable supports for formwork used in concrete slab, beam, column, and wall construction. This prop may suit temporary formwork support when the required support height falls within its listed adjustment range.

EK offers black, galvanized, powder-coated, and painted surface treatments and lists BS1139 / EN74 or customer-requested marking options. The official product page does not provide a numeric load-bearing capacity. Project teams should base final product selection on the approved temporary support design and project-specific loading conditions.

Weight	15.3 kg
Load-Bearing Capacity	Not listed on the website
Material	Q235 carbon steel
Overall Length	3,200–4,875 mm

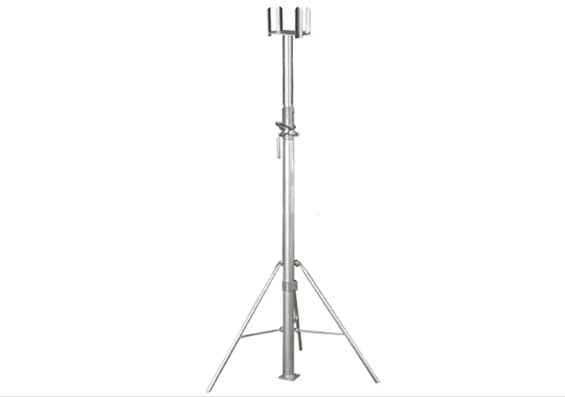

Formwork Prop

When to Use Formwork Props

EK's Formwork Prop is a heavy-duty adjustable steel prop with a working range of 1,842–3,142 mm. It has a 63.5 mm × 3.2 mm tube, a 150 mm × 150 mm × 8 mm plate, and a published weight of 20.9 kg.

The official product page identifies temporary scaffolding, concrete slab formwork support, and soffit formwork support as relevant applications. EK also lists temporary support for walls, ceilings, formwork, and trenches, covering a range of building and concrete formwork applications.

EK lists Q235 or Q345 steel as the material and offers painted, galvanized, hot-dip galvanized, and powder-coated finishes. The website does not provide a numeric load-bearing capacity. Project teams should confirm the required capacity, support layout, and construction sequence before using the prop.

Weight	20.9 kg
Load-Bearing Capacity	Not listed on the website
Material	Q235 or Q345 steel
Overall Length	1,842–3,142 mm

EK Scaffolding Props in Use

EK Scaffolding's official website does not provide specific project case studies or installation examples for the prop products listed above.

Support Services from EK Scaffolding

For Commercial Projects and Contractors

EK Scaffolding provides commercial customers with technical support, installation guidance, CAD and PDF drawings, detailed technical data, and customization support. The company also offers free samples and product brochures for testing and reference.

Steel Prop Cutting and Welding

EK states that it uses laser cutting for its prop tubes and automated welding processes to join the threaded sleeve and base plate. For heavy-duty props, the company also reams the inner tube according to customer requirements.

Technical and Customization Support

EK provides installation guidance and technical support for project applications. The company also states that it can customize products for special requirements and provide CAD and PDF drawings covering scaffolding designs, technical data, accessories, and installation configurations.

Source: EK Scaffolding – Steel Props
Source: EK Scaffolding – About Us

For Local Builders and DIY Projects

EK identifies both construction and DIY projects as applications for temporary support with its post shores. However, the official website does not describe dedicated DIY retail advisory services or a rental program. Individual buyers should confirm the technical requirements before purchasing or installing props.

EK Scaffolding Company Information

Company Name	EK Metalwork Co., Ltd. (EK Scaffolding)
Headquarters Address	Nanjing, China Full street address not listed on the official website.
Official Website	https://www.ekscaffolding.com/

Service Area

EK Scaffolding supplies international markets from China. Its official website identifies partners in the United States, Europe, Southeast Asia, India, and the Middle East. The company's product news also describes shipments to the United Kingdom and other European markets.

Source: EK Scaffolding – About Us
